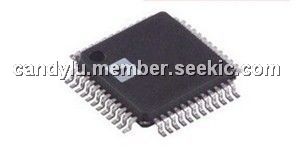

ADV7125KSTZ140

digital-to-analog converter, LQFP, 7 V, Triple 8-Bit DACs, 330 MSPS Throughput Rate

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.20~4.90 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $4.20~4.90

PartNumber:: ADV7125KSTZ140

Brand:: Analog Devices - ADI | Pack: LQFP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. CandyLu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-08-07

From Other Seller

Part Number:ADV7125KSTZ140
US $4.20 - 4.90
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
MOC3063

US $0.32 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

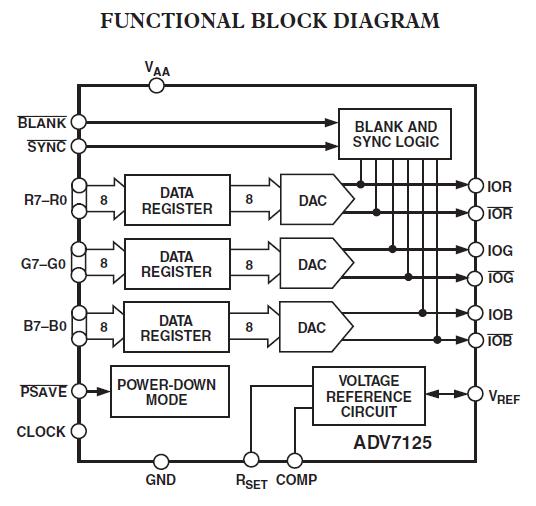

The ADV7125KSTZ140 is a triple high speed, digital-to-analog converter on a single monolithic chip. It consists of three high speed, 8-bit video DACs with complementary outputs, a standard TTL input interface, and a high impedance, analog output current source. The applications of the ADV7125KSTZ140 include Digital Video Systems, High Resolution Color Graphics, Digital Radio Modulation, Image Processing, Instrumentation, Video Signal Reconstruction.

Parametrics

ADV7125KSTZ140 absolute maximum ratings: (1)VAA to GND: 7 V; (2)Voltage on any Digital Pin: GND – 0.5 V to VAA + 0.5 V; (3)Ambient Operating Temperature (TA): –40℃ to +85℃; (4)Storage Temperature (TS): –65℃ to +150℃; (5)Junction Temperature (TJ): 150℃; (6)Lead Temperature (Soldering, 10 sec): 300℃; (7)Vapor Phase Soldering (1 Minute): 220℃; (8)IOUT to GND: 0 V to VAA.

Features

ADV7125KSTZ140 features: (1)330 MSPS Throughput Rate; (2)Triple 8-Bit DACs; (3)RS-343A/RS-170 Compatible Output; (4)Complementary Outputs; (5)DAC Output Current Range 2 to 26 mA; (6)TTL Compatible Inputs; (7)Internal Reference (1.23 V); (8)Single-Supply 5 V/3.3 V Operation; (9)48-Lead LQFP Package; (10)Low Power Dissipation (30 mW Min @ 3 V); (11)Low Power Standby Mode (6 mW Typ @ 3 V); (12)Industrial Temperature Range (–40℃ to +85℃).
