ADM485ARZ-REEL

differential line transceiver, 5V, 5MBPS, 8SOIC, 500 mW, 10 ns, ADM485ARZ-REEL

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.28~0.29 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.28~0.29

PartNumber:: ADM485ARZ-REEL

Brand:: Analog Devices - ADI | Pack: SOIC | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. CandyLu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-17

From Other Seller

Part Number:ADM485ARZ-REEL
US $0.28 - 0.29
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

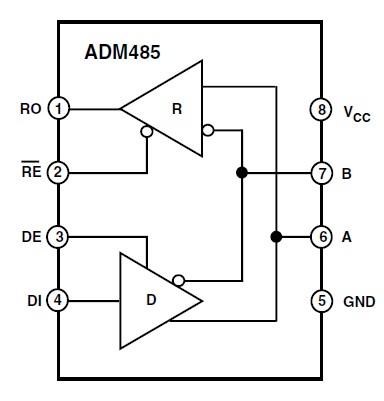

The ADM485ARZ-REEL is a differential line transceiver suitable for high speed bidirectional data communication on multipoint bus transmission lines. It is designed for balanced data transmission and complies with both EIA Standards RS-485 and RS-422. The ADM485ARZ-REEL contains a differential line driver and a differential line receiver. Both the driver and the receiver may be enabled independently. When disabled, the outputs are tristated. The applications of the ADM485ARZ-REEL include Low Power RS-485 Systems, DTE-DCE Interface, Packet Switching, Local Area Networks, Data Concentration, Data Multiplexers and Integrated Services Digital Network (ISDN).

Parametrics

ADM485ARZ-REEL absolute maximum ratings: (1)VCC: +7 V; (2)Inputs: Driver Input (DI): –0.3 V to VCC + 0.3 V; Control Inputs (DE, RE): –0.3 V to VCC + 0.3 V; Receiver Inputs (A, B): –14 V to +14 V; (3)Outputs: Driver Outputs: –14 V to +14 V; Receiver Output: –0.5 V to VCC +0.5 V; (4)Power Dissipation: 500 mW; (5)θJA, Thermal Impedance:+130℃/W; (6)Operating Temperature Range: 0℃ to +70℃; (7)Storage Temperature Range: –65℃ to +150℃; (8)Lead Temperature (Soldering, 10 sec): +300℃; (9)Vapour Phase (60 sec): +215℃; (10)Infrared (15 sec): +220℃.

Features

ADM485ARZ-REEL features: (1)Meets EIA RS-485 Standard; (2)5 Mb/s Data Rate; (3)Single +5 V Supply; (4)–7 V to +12 V Bus Common-Mode Range; (5)High Speed, Low Power BiCMOS; (6)Thermal Shutdown Protection; (7)Short Circuit Protection; (8)Zero Skew Driver; (9)Driver Propagation Delay: 10 ns; (10)Receiver Propagation Delay: 25 ns; (11)High Z Outputs with Power Off; (12)Superior Upgrade for LTC485.
