Product Summary
The MCIMX515DJM8C multimedia applications processor represents Freescale Semiconductor latest addition to a growing family of multimedia-focused products offering high performance processing optimized for lowest power consumption. The MCIMX515DJM8C processor features Freescale advanced and power-efficient implementation of the ARM Cortex A8. core, which operates at speeds as high as 800 MHz. Up to 200 MHz DDR2 and mobile DDR DRAM clock rates are supported.
Parametrics
MCIMX515DJM8C absolute maximum ratings: (1)Peripheral Core Supply Voltage VCC: –0.3 to 1.35 V; (2)ARM Core Supply Voltage VDDGP: –0.3 to 1.15 V; (3)Supply Voltage (UHVIO, I2C) Supplies denoted as I/O Supply: –0.5 to 3.6 V; (4)Supply Voltage (except UHVIO, I2C) Supplies denoted as I/O Supply: –0.5 to 3.3 V; (5)USB VBUS VBUS: 5.25 V; (6)Input/Output Voltage Range Vin/Vout: –0.5 OVDD +0.3V; (7)ESD Damage Immunity: Vesd V; (8)Human Body Model (HBM): 2000V; (9)Charge Device Model (CDM): 500V; (10)Storage Temperature Range TSTORAGE: –40 to 125 ℃; (11)Junction Temperature (MCIMX51xD - Consumer) TJ: 105 ℃; (12)Junction Temperature (MCIMX51xC - Industrial) TJ: 125 ℃.
Features
MCIMX515DJM8C features: (1)Smart Speed Technology; (2)Applications Processor; (3)Multimedia Powerhouse; (4)Powerful Graphics Acceleration; (5)Interface Flexibility; (6)Increased Security.

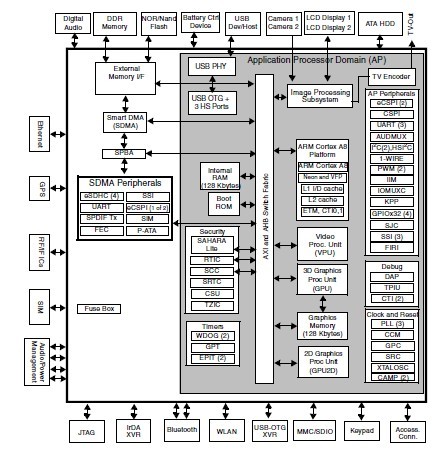

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MCIMX515DJM8C |
Freescale Semiconductor |
Processors - Application Specialized iMX515 App Processor Extended Temp |
Data Sheet |
|
|
||||||||||||
|
MCIMX515DJM8CR2 |
Freescale Semiconductor |
Processors - Application Specialized i.MX51 32bit 800 MHz |
Data Sheet |
|
|
||||||||||||
