AD822ARZ-REEL7

low power FET input op amp, 1.9MHZ, 8SOIC, 5 to 30 V, 1.8 MHz, 3 V/μs, AD822ARZ-REEL7

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.20~2.25 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.20~2.25

PartNumber:: AD822ARZ-REEL7

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. CandyLu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-17

From Other Seller

Part Number:AD822ARZ-REEL7
US $2.20 - 2.25

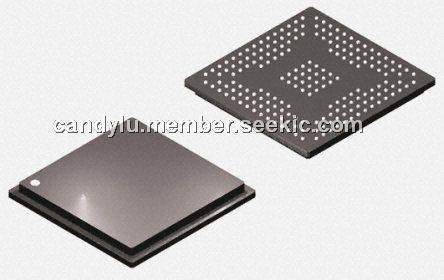

TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AD822ARZ-REEL7 is a dual precision, low power FET input op amp that can operate from a single supply of 3.0 V to 36 V or dual supplies of ±1.5 V to ±18 V. It has true single-supply capability with an input voltage range extending below the negative rail, allowing the AD822ARZ-REEL7 to accommodate input signals below ground in the single-supply mode. Output voltage swing extends to within 10 mV of each rail, providing the maximum output dynamic range. The applications of the AD822ARZ-REEL7 include: (1)Battery-powered precision instrumentation; (2)Photodiode preamps; (3)Active filters; (4)12-bit to 14-bit data acquisition systems; (5)Medical instrumentation; (6)Low power references and regulators.

Parametrics

AD822ARZ-REEL7 absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Internal Power Dissipation PDIP (N): Observe derating curves; SOIC (R); Observe derating curves; (3)Input Voltage: (+VS + 0.2 V) to -(20 V + VS); (4)Output Short Circuit Duration: Indefinite; (5)Differential Input Voltage: ±30 V; (6)Storage Temperature Range (N): –65℃ to +125℃; (7)Storage Temperature Range (R, RM): –65℃ to +150℃; (8)Operating Temperature Range AD822 A Grade and B Grade: –40℃ to +85℃; (9)Lead Temperature Range (Soldering, 60 sec): 260℃.

Features

AD822ARZ-REEL7 features: (1)True single-supply operation: Output swings rail-to-rail; Input voltage range extends below ground; Single-supply capability from 3 V to 36 V; Dual-supply capability from ±1.5 V to ±18 V; (2)High load drive: Capacitive load drive of 350 pF, G = +1; Minimum output current of 15 mA; (3)Excellent ac performance for low power: 800 μA maximum quiescent current per amplifier; Unity gain bandwidth: 1.8 MHz; Slew rate of 3.0 V/μs; (4)Good dc performance: 800 μV maximum input offset voltage; 2 μV/℃ typical offset voltage drift; 25 pA maximum input bias current; (5)Low noise: 13 nV/√Hz @ 10 kHz; No phase inversion.
