AD623ARZ

Product Summary

The AD623ARZ is an integrated single-supply instrumentation amplifier that delivers rail-to-rail output swing on a 3 V to 12 V supply. The AD623ARZ offers superior user flexibility by allowing single gain set resistor programming and by conforming to the 8-lead industry standard pinout configuration. With no external resistor, the AD623ARZ is configured for unity gain (G = 1), and with an external resistor, the AD623ARZ can be programmed for gains up to 1000. The AD623ARZ holds errors to a minimum by providing superior ac CMRR that increases with increasing gain. Line noise, as well as line harmonics, are rejected because the CMRR remains constant up to 200 Hz. The AD623ARZ has a wide input common-mode range and can amplify signals that have a common-mode voltage 150 mV below ground. Although the design of the AD623ARZ was optimized to operate from a single supply, the AD623ARZ still provides superior performance when operated from a dual voltage supply (±2.5 V to ±6.0 V).

Parametrics

AD623ARZ absolute maximum ratings: (1)Supply Voltage: ±6 V; (2)Internal Power Dissipation: 650 mW; (3)Differential Input Voltage: ±6 V; (4)Output Short-Circuit Duration: Indefinite; (5)Storage Temperature Range: -65℃ to +125℃; (6)Operating Temperature Range: -40℃ to +85℃; (7)Lead Temperature (Soldering, 10 sec): 300℃.

Features

AD623ARZ features: (1)Easy to use; (2)Higher performance than discrete design; (3)Single-supply and dual-supply operation; (4)Rail-to-rail output swing; (5)Input voltage range extends 150 mV below ground (single supply); (6)Low power, 550 μA maximum supply current; (7)Gain set with one external resistor Gain range: 1 (no resistor) to 1000; (8)High accuracy dc performance; (9)0.10% gain accuracy (G = 1); (10)0.35% gain accuracy (G > 1); (11)10 ppm maximum gain drift (G = 1); (12)200 μV maximum input offset voltage (AD623A); (13)2 μV/℃ maximum input offset drift (AD623A); (14)100 μV maximum input offset voltage (AD623B); (15)1 μV/℃ maximum input offset drift (AD623B); (16)25 nA maximum input bias current.

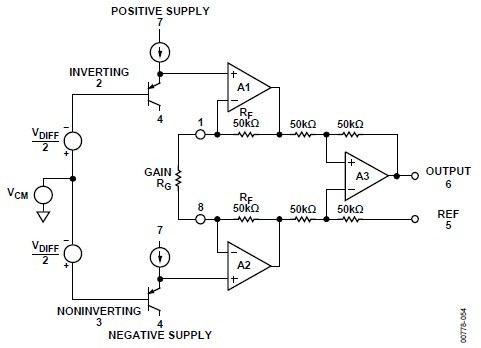

Diagrams
