Product Summary

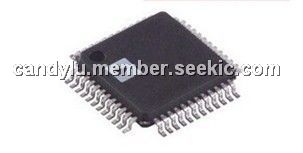

The ADV7125KSTZ50 is a triple high speed, digital-to-analog converter on a single monolithic chip. It consists of three high speed, 8-bit video DACs with complementary outputs, a standard TTL input interface, and a high impedance, analog output current source. The applications of the ADV7125KSTZ50 include Digital Video Systems, High Resolution Color Graphics, Digital Radio Modulation, Image Processing, Instrumentation, Video Signal Reconstruction.
Parametrics
ADV7125KSTZ50 absolute maximum ratings: (1)VAA to GND: 7 V; (2)Voltage on any Digital Pin: GND – 0.5 V to VAA + 0.5 V; (3)Ambient Operating Temperature (TA): –40℃ to +85℃; (4)Storage Temperature (TS): –65℃ to +150℃; (5)Junction Temperature (TJ): 150℃; (6)Lead Temperature (Soldering, 10 sec): 300℃; (7)Vapor Phase Soldering (1 Minute): 220℃; (8)IOUT to GND: 0 V to VAA.
Features
ADV7125KSTZ50 features: (1)330 MSPS Throughput Rate; (2)Triple 8-Bit DACs; (3)RS-343A/RS-170 Compatible Output; (4)Complementary Outputs; (5)DAC Output Current Range 2 to 26 mA; (6)TTL Compatible Inputs; (7)Internal Reference (1.23 V); (8)Single-Supply 5 V/3.3 V Operation; (9)48-Lead LQFP Package; (10)Low Power Dissipation (30 mW Min @ 3 V); (11)Low Power Standby Mode (6 mW Typ @ 3 V); (12)Industrial Temperature Range (–40℃ to +85℃).
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADV7125KSTZ50 |
|
IC DAC VIDEO 3-CH 50MHZ 48LQFP |
Data Sheet |
|
|
||||||||||||||||||
|
ADV7125KSTZ50-REEL |
|
IC DAC VIDEO 3CH 330MHZ 48-LQFP |
Data Sheet |
|
|
||||||||||||||||||
