AD7934BRU

successive approximation (SAR) ADC, 12BIT, 20 MHz, 1.5MSPS, 28TSSOP, 2.7 V to 5.25 V, 8 mW

Rated 5 Rating 5 | reviews | Write a review

Price:: US $12.00~12.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $12.00~12.50

PartNumber:: AD7934BRU

Brand:: Analog Devices - ADI | Pack: TSSOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. CandyLu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-15

From Other Seller

Part Number:AD7934BRU
US $12.00 - 12.50
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

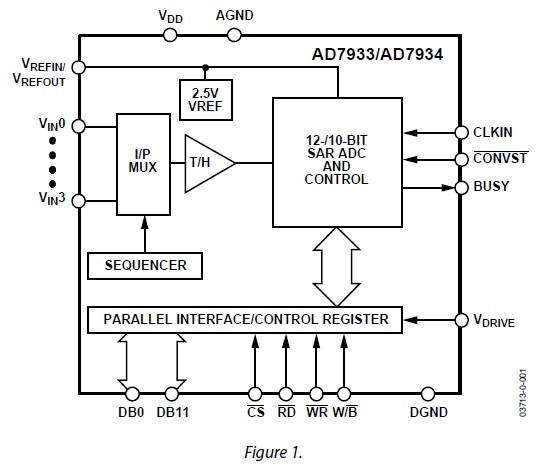

The AD7934BRU is a 10-bit, high speed, low power, successive approximation (SAR) ADC. The device operates from a single 2.7 V to 5.25 V power supply and feature throughput rates to 1.5 MSPS. The AD7934BRU contains a low noise, wide bandwidth, differential track-and-hold amplifier that can handle input frequencies up to 20 MHz. The AD7934BRU features 4 analog input channels with a channel sequencer to allow a consecutive sequence of channels to be converted on. It can accept either single-ended, fully differential, or pseudo-differential analog inputs.

Parametrics

AD7934BRU absolute maximum ratings: (1)VDD to AGND/DGND: -0.3 V to +7 V; (2)VDRIVE to AGND/DGND: -0.3 V to VDD +0.3 V; (3)Analog Input Voltage to AGND: -0.3 V to VDD + 0.3 V; (4)Digital Input Voltage to DGND: -0.3 V to +7 V; (5)VDRIVE to VDD: -0.3 V to VDD + 0.3 V; (6)Digital Output Voltage to AGND: -0.3 V to VDRIVE + 0.3 V; (7)VREFIN to AGND: -0.3 V to VDD + 0.3 V; (8)AGND to DGND: -0.3 V to +0.3 V; (9)Input Current to Any Pin Except Supplies: ±10 mA; (10)Operating Temperature Range Commercial (B Version): -40℃ to +85℃; (11)Storage Temperature Range: -65℃ to +150℃; (12)Junction Temperature: 150℃; (13)θJA Thermal Impedance: 97.9℃/W (TSSOP); (14)θJC Thermal Impedance: 14℃/W (TSSOP); (15)Lead Temperature, Soldering Reflow Temperature (10 sec to 30 sec): 255℃; (16)ESD: 2 kV.

Features

AD7934BRU features: (1)Fast throughput rate: 1.5 MSPS; (2)Specified for VDD of 2.7 V to 5.25 V; (3)Low power: 8 mW max at 1.5 MSPS with 3 V supplies; 16 mW max at 1.5 MSPS with 5 V supplies; (4)4 analog input channels with a sequencer; (5)Software configurable analog inputs; (6)Accurate on-chip 2.5 V reference; (7)Wide input bandwidth 70 dB SNR at 50 kHz input frequency; (8)No pipeline delays; (9)High speed parallel interface—word/byte modes; (10)Full shutdown mode: 1 μA max; (11)28 lead TSSOP package.
