Product Summary
The OP295GSZ is a dual/quad rail-to-rail operational amplifier. Rail-to-rail output swing combined with dc accuracy are the key features of OP295GSZ. By using a bipolar front end, lower noise and higher accuracy than that of CMOS designs has been achieved. Both input and output ranges include the negative supply, providing the user zero-in/zero-out capability. For users of 3.3 volt systems such as lithium batteries, the OP295GSZ is specified for three volt operation. Applications include: Battery-operated instrumentation, Servo amplifiers, Actuator drives, Sensor conditioners, Power supply control.
Parametrics
OP295GSZ absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Input Voltage: ±18 V; (3)Differential Input Voltage: +36 V; (4)Output Short-Circuit Duration: Indefinite; (5)Storage Temperature Range P, S Package: –65℃ to +150℃; (6)Operating Temperature Range: –40℃ to +125℃; (7)Junction Temperature Range, P, S Package: –65℃ to +150℃; (8)Lead Temperature Range (Soldering, 60 Sec): +300℃.
Features
OP295GSZ features: (1)Rail-to-Rail Output Swing; (2)Single-Supply Operation: +3 V to +36 V; (3)Low Offset Voltage: 300 uV; (4)Gain Bandwidth Product: 75 kHz; (5)High Open-Loop Gain: 1000 V/mV; (6)Unity-Gain Stable; (7)Low Supply Current/Per Amplifier: 150 uA max.

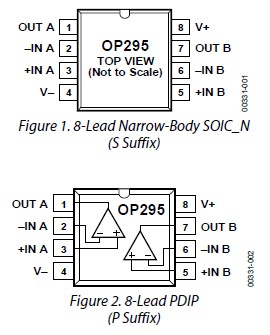

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 OP295GSZ |
|
IC OPAMP GP R-R 85KHZ DUAL 8SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
OP295GSZ-REEL |
|
IC OPAMP GP R-R 85KHZ DUAL 8SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
OP295GSZ-REEL7 |
|
IC OPAMP GP R-R 85KHZ DUAL 8SOIC |
Data Sheet |
|
|
||||||||||||||||||
