Product Summary
The ADV7180BSTZ 10-Bit, 4× Oversampling SDTV Video Decoder automatically detects and converts standard analog baseband television signals compatible with worldwide NTSC, PAL, and SECAM standards into 4:2:2 component video data compatible with the 8-bit ITU-R BT.656 interface standard. The applications of the ADV7180BSTZ include Digital camcorders and PDAs, Low-cost SDTV PIP decoder for digital TVs, Multichannel DVRs for video security, AV receivers and video transcoding, PCI-/USB-based video capture and TV tuner cards, Personal media players and recorders, Smartphone/multimedia handsets, In-car/automotive infotainment units, Rearview camera/vehicle safety systems.
Parametrics
ADV7180BSTZ absolute maximum ratings: (1)AVDD to AGND: 2.2 V; (2)DVDD to DGND: 2.2 V; (3)PVDD to AGND: 2.2 V; (4)DVDDIO to DGND: 4 V; (5)DVDDIO to AVDD: -0.3 V to +2 V; (6)PVDD to DVDD: -0.3 V to +0.9 V; (7)DVDDIO to PVDD: –0.3 V to +2 V; (8)DVDDIO to DVDD: -0.3 V to +2 V; (9)AVDD to PVDD: -0.3 V to +0.3 V; (10)AVDD to DVDD: -0.3 V to +0.9 V; (11)Digital Inputs Voltage: DGND - 0.3 V to DVDDIO + 0.3 V; (12)Digital Output Voltage: DGND - 0.3 V to DVDDIO + 0.3 V; (13)Analog Inputs to AGND: AGND - 0.3 V to AVDD + 0.3 V; (14)Maximum Junction Temperature (TJ max): 125℃; (15)Storage Temperature Range: -65℃ to +150℃; (16)Infrared Reflow Soldering (20 sec): 260℃.
Features
ADV7180BSTZ features: (1)Worldwide NTSC/PAL/SECAM color demodulation support; (2)One 10-bit ADC, 4× oversampling for CVBS, 2× oversampling for Y/C mode, and 2× oversampling for YPrPb (per channel); (3)Three video input channels with on-chip antialiasing filter; (4)CVBS (composite), Y/C (S-video), and YPrPb (component) video input support; (5)5-line adaptive comb filters and CTI/DNR video enhancement; (6)Adaptive Digital Line Length Tracking (ADLLT.), signal processing, and enhanced FIFO management give mini-TBC functionality.

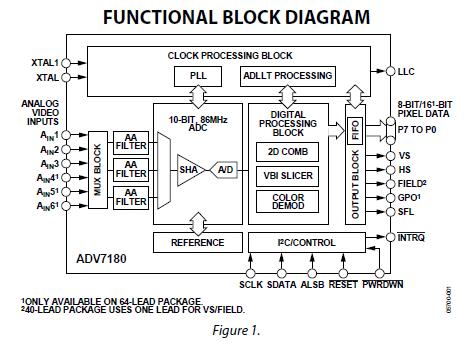

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADV7180BSTZ |
|
IC VIDEO DECODER SDTV 64-LQFP |
Data Sheet |
|
|
||||||||||||||||
|
ADV7180BSTZ-REEL |
|
IC VIDEO DECODER SDTV 64-LQFP |
Data Sheet |
|
|
||||||||||||||||
