Product Summary

The MX25L25635EMI is a 268,435,456 bits serial Flash memory, which is configured as 33,554,432 x 8 internally. When the MX25L25635EMI is in two or four I/O mode, the structure becomes 134,217,728 bits x 2 or 67,108,864 bits x 4. The MX25L25635EMI features a serial peripheral interface and software protocol allowing operation on a simple 3-wire bus. The three bus signals are a clock input (SCLK), a serial data input (SI), and a serial data output (SO). Serial access to the device is enabled by CS input.

Parametrics

MX25L25635EMI absolute maximum ratings: (1)Ambient Operating Temperature, Industrial grade: -40 to 85℃; (2)Storage Temperature: -55 to 125℃; (3)Applied Input Voltage: -0.5V to 4.6V; (4)Applied Output Voltage: -0.5V to 4.6V; (5)VCC to Ground Potential: -0.5V to 4.6V.

Features

MX25L25635EMI features: (1)Serial Peripheral Interface compatible: Mode 0 and Mode 3; (2)268,435,456 x 1 bit structure or 134,217,728 x 2 bits (two I/O mode) structure or 67,108,864 x 4 bits (four I/O mode) structure; (3)8192 Equal Sectors with 4K bytes each: Any Sector can be erased individually; (4)1024 Equal Blocks with 32K bytes each: Any Block can be erased individually; (5)512 Equal Blocks with 64K bytes each: Any Block can be erased individually; (6)Power Supply Operation: 2.7 to 3.6 volt for read, erase, and program operations; (7)Latch-up protected to 100mA from -1V to Vcc +1V.

Diagrams

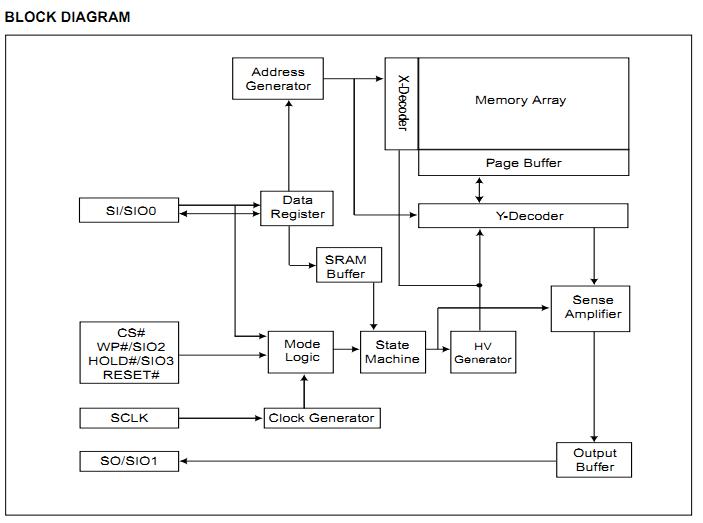

MX25L25635EMI diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MX25L25635EMI-12G
MX25L25635EMI-12G

IC FLASH SER 256MB 80MHZ 16SOP
Data Sheet
0-1: $3.64
1-10: $3.32
10-50: $3.23
50-100: $2.90
100-250: $2.89
250-500: $2.71
500-1000: $2.59
1000-2500: $2.51
2500-5000: $2.31
