Product Summary

The MC9RS08KA4CWJ is an 8-Bit RS08 Central Processor Unit.

Parametrics

MC9RS08KA4CWJ absolute maximum ratings: (1)Supply voltage, VDD: –0.3 to 5.8 V; (2)Maximum current into VDD, IDD: 120 mA; (3)Digital input voltage, VIn: –0.3 to VDD + 0.3 V; (4)Instantaneous maximum current Single pin limit (applies to all port pins), ID: ±25 mA; (5)Storage temperature range, Tstg: –55 to 150℃.

Features

MC9RS08KA4CWJ features: (1)8-Bit RS08 Central Processor Unit; (2)On-Chip Memory; (3)Power-Saving Modes; (4)Clock Source Options; (5)System Protection; (6)System Protection.

Diagrams

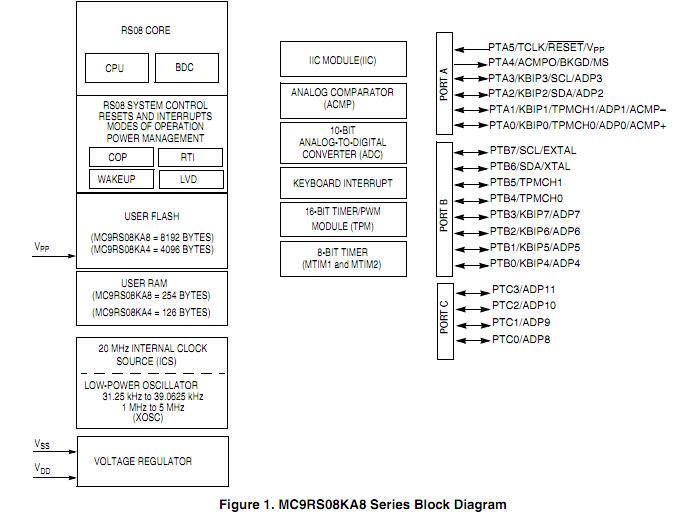

MC9RS08KA4CWJ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MC9RS08KA4CWJ
MC9RS08KA4CWJ
Freescale Semiconductor
8-bit Microcontrollers (MCU) 9RS08KA8 20SOIC
Data Sheet
0-1: $0.58
1-25: $0.52
25-50: $0.44
50-100: $0.37
MC9RS08KA4CWJR
MC9RS08KA4CWJR
Freescale Semiconductor
8-bit Microcontrollers (MCU) 8BIT RS08, 4KB FLASH
Data Sheet
0-1: $0.72
1-25: $0.68
25-100: $0.65
100-500: $0.58
500-1000: $0.41
