AT24C02C-XHM-T

Two-wire Serial, Electrically Erasable and Programmable Read-only Memory(EEPROM), 2K-Bit, 256 x 8, 8-Pin TSSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.08~0.09 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.08~0.09

PartNumber:: AT24C02C-XHM-T

Brand:: ATMEL Corporation - ATMEL | Pack: TSSOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. CandyLu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-08-07

From Other Seller

Part Number:AT24C02C-XHM-T
US $0.08 - 0.09
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

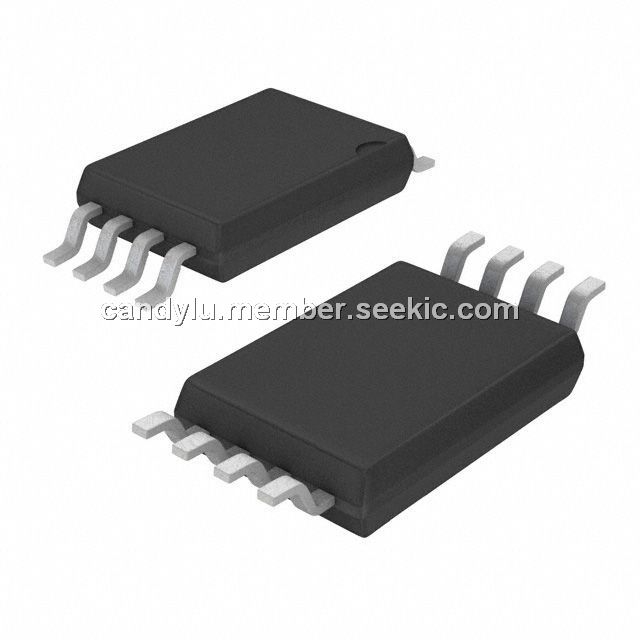

The Atmel AT24C02C-XHM-T provides 2048-bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as 256-words of 8-bits each. The AT24C02C-XHM-T is optimized for use in many industrial and commercial applications where low power and low-voltage operation are essential. The AT24C02C-XHM-T is available in spacesaving 8-lead TSSOP and is accessed via a two-wire serial interface.

Parametrics

AT24C02C-XHM-T absolute maximum ratings: (1)Operating Temperature: –55℃ to +125℃; (2)Storage Temperature:–65℃ to +150℃; (3)Voltage on Any Pin with Respect to Ground: –1.0V to +7.0V; (4)Maximum Operating Voltage: 6.25V; (5)DC Output Current: 5.0 mA.

Features

AT24C02C-XHM-T features: (1)Low-voltage and Standard-voltage Operation; (2)Internally Organized 256 x 8 (2K); (3)Two-wire Serial Interface; (4)Schmitt Trigger, Filtered Inputs for Noise Suppression; (5)Bidirectional Data Transfer Protocol; (6)1MHz (5V), 400kHz (1.7V, 2.5V, 2.7V) Compatibility; (7)Write Protect Pin for Hardware Data Protection; (8)8-byte Page (2K) Write Modes; (9)Partial Page Writes Allowed; (10)Self-timed Write Cycle (5ms max); (11)High-reliability; (12)Green (Pb/Halide-free/RoHS Compliant) Package Options; (13)Die Sales: Wafer Form and Tape and Reel.
