Product Summary
The AD829ARZ is a low noise (1.7 nV/√Hz), high speed op amp with custom compensation that provides the user with gains of ±1 to ±20 while maintaining a bandwidth greater than 50 MHz. The AD829ARZ’s 0.04° differential phase and 0.02% differential gain performance at 3.58 MHz and 4.43 MHz, driving reverse-terminated 50 Ω or 75 Ω cables, makes it ideally suited for professional video applications. The AD829ARZ achieves its 230 V/μs uncompensated slew rate and 750 MHz gain bandwidth while requiring only 5 mA of current from power supplies.
Parametrics
AD829ARZ absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Internal Power Dissipation PDIP (N): 1.3 W; SOIC (R): 0.9 W; CERDIP (Q): 1.3 W; LCC (E): 0.8 W; (3)Input Voltage: ±V; (4)Differential Input Voltage: ±6 V; (5)Output Short Circuit Duration: Indefinite; (6)Storage Temperature Range (Q, E): –65℃ to +150℃; (7)Storage Temperature Range (N, R): –65℃ to +125℃; (8)Operating Temperature Range: –40℃ to +125℃; (9)Lead Temperature Range (Soldering 60 sec): 300℃.
Features
AD829ARZ features: (1)High Speed: 120 MHz Bandwidth, Gain = –1; 230 V/μs Slew Rate; 90 ns Settling Time to 0.1%; (2)Ideal for Video Applications: 0.02% Differential Gain; 0.04° Differential Phase; (3)Low Noise: 1.7 nV/√Hz Input Voltage Noise; 1.5 pA/√Hz Input Current Noise; (4)Excellent DC Precision: 1 mV Max Input Offset Voltage (Over Temp); 0.3 mV/℃ Input Offset Drift; (5)Flexible Operation: Specified for ±5 V to ±15 V Operation; ±3 V Output Swing into a 150Ω Load; External Compensation for Gains 1 to 20; 5 mA Supply Current; (6)Available in Tape and Reel in Accordance with EIA-481A Standard.

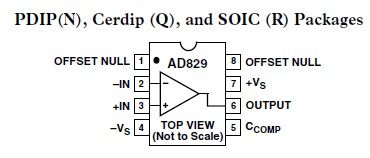

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD829ARZ |
|
IC VIDEO OPAMP HS LN 8-SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
AD829ARZ-REEL |
|
IC VIDEO OPAMP HS LN 8-SOIC T/R |
Data Sheet |
|
|
||||||||||||||||||
|
AD829ARZ-REEL7 |
|
IC VIDEO OPAMP HS LN 8-SOIC T/R |
Data Sheet |
|
|
||||||||||||||||||
