Product Summary

The AD654JRZ is a monolithic V/F converter consisting of an input amplifier, a precision oscillator system, and a high current output stage. A single RC network is all that is required to set up any full scale (FS) frequency up to 500 kHz and any FS input voltage up to ± 30 V. Linearity error of the AD654JRZ is only 0.03% for a 250 kHz FS, and operation is guaranteed over an 80 dB dynamic range. The overall temperature coefficient (excluding the effects of external components) is typically ±50 ppm/℃. The AD654JRZ operates from a single supply of 5 V to 36 V and consumes only 2.0 mA quiescent current.

Parametrics

AD654JRZ absolute maximum ratings: (1)Total Supply Voltage +VS to –VS: 36 V; (2)Maximum Input Voltage (Pins 3, 4) to –VS: –300 mV to +VS; (3)Maximum Output Current: Instantaneous: 50 mA; Sustained: 25 mA; (4)Logic Common to –VS: –500 mV to (+VS –4); (5)Storage Temperature Range: –65℃ to +150℃.

Features

AD654JRZ features: (1)Low Cost; (2)Single or Dual Supply, 5 V to 36 V, ±5 V to ±18 V; (3)Full-Scale Frequency Up to 500 kHz; (4)Minimum Number of External Components Needed; (5)Versatile Input Amplifier: Positive or Negative Voltage Modes; Negative Current Mode; High Input Impedance, Low Drift; (6)Low Power: 2.0 mA Quiescent Current; (7)Low Offset: 1 mV.

Diagrams

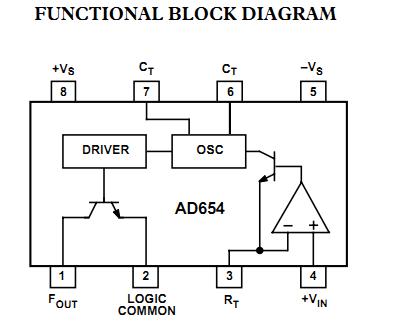

AD654JRZ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD654JRZ
AD654JRZ

IC V-F CONVERTER MONO 8-SOIC
Data Sheet
0-1: $5.08
1-10: $4.57
10-100: $3.76
100-250: $3.45
250-500: $3.15
500-1000: $2.74
1000-2500: $2.71
AD654JRZ-REEL
AD654JRZ-REEL

IC V-F CONVERTER MONO 8-SOIC TR
Data Sheet
0-2500: $2.71
AD654JRZ-REEL7
AD654JRZ-REEL7

IC V-F CONVERTER MONO 8-SOIC TR
Data Sheet
0-750: $2.90
